COSINA

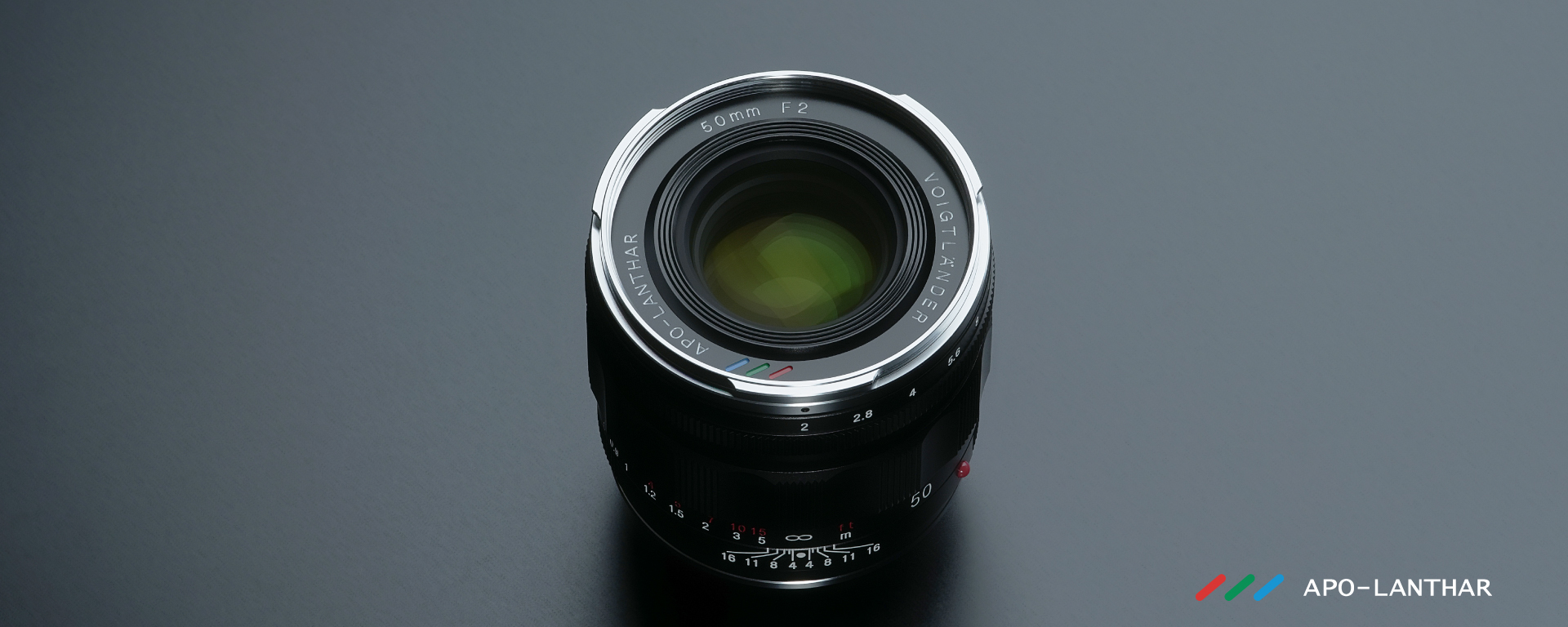

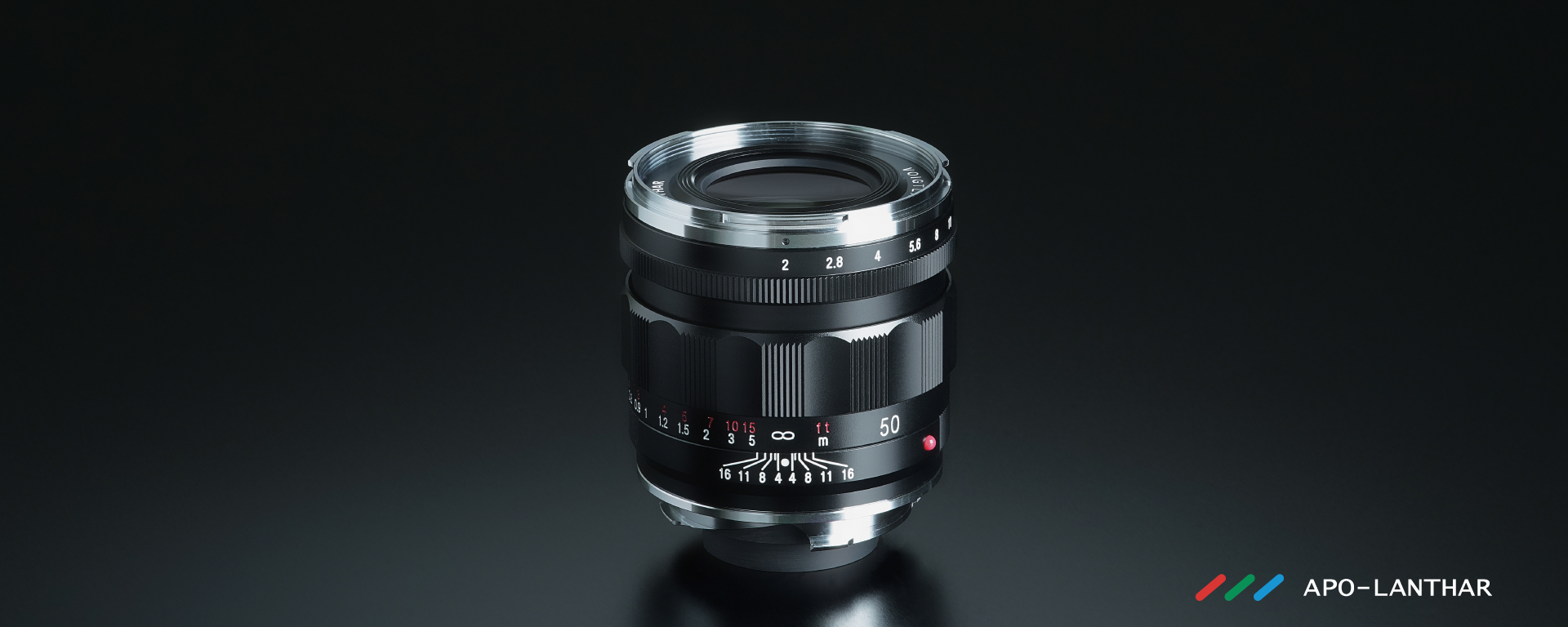

APO-LANTHAR 50mm F2 Aspherical

Ultimate standard lens

Features

This product uses the same optical system as the popular Sony E-mount lens, which have been introduced as the highest-performance standard lens in Voigtländer’s history, and has an optical design optimized for the image sensors of mirrorless cameras with the Nikon Z-mount.
The apochromatic design of the lens minimizes axial chromatic aberration of the three primary colors of light, RGB, to zero, and the performance of the lens will revolutionize the value of standard lenses. The lens also offers high mobility and easy handling in a compact style.

Main Features

Designed exclusively for the Nikon Z mount

Optics optimized for the image sensors of mirrorless cameras with the Nikon Z-mount are implemented. The lens has a full-frame image circle and can be used with both full-frame (Nikon FX format) and APS-C size (Nikon DX format) mirrorless cameras.

Apochromatic design

This design thoroughly eliminates various aberrations including axial chromatic aberrations and pursues the ultimate performance in terms of resolution and contrast reproducibility.

Optical glass and mechanical components that deliver high performance

Of the 10 elements in 8 groups in the optical configuration of this lens, 5 elements are made using anomalous partial dispersion glass, 2 elements have aspherical surfaces on both sides, and the lens also employs a floating mechanism.

Information communication with the body by electronic contacts

This lens is equipped with electronic contacts and realizes communications between the lens and the body. In addition to Exif information and in-body image stabilization (3 axes), by combining with a body compatible with communications and the latest firmware*1, three types of focusing support functions ( [1] focusing by color changing of the focus point frame [2] peaking function focusing and [3] focusing with the enlargement button) are supported.

Beautiful bokeh by 12 aperture blades

A 12-blade aperture is used to make the holes formed by the blades closer to a circle. The out-of-focus part has a natural depiction, and the point light source is not a polygon but a round and soft bokeh.

Manual focus for reliable focus operation

adopting an full-metal helicoid unit processed and adjusted with high precision and high-quality grease that produces an appropriate torque, focusing with a smooth operation feeling is realized. It enables fine focus adjustment.

*1 List of supported models and firmware
Please use the latest firmware because the performance may not be as good as the firmware listed or some of the functions may be limited.


Corresponding body and firmware *2

Z 7
v3.4 or later
Z 6
v3.4 or later
Z 50
v2.2 or later
Z 5
v1.2 or later
Z 6II
v1.3 or later
Z 7II
v1.3 or later
Z fc
v1.0 or later
Z 9
v1.0 or later

*2 If the Firmware is less than the ones listed above, the performance may not be exhibited or some functions may be limited, so please use the latest Firmware. Please check the instruction manual of the body for checking the Firmware of your body and obtaining the latest Firmware.


*This product is developed and manufactured under a license agreement with Nikon Corporation.

Specifications

Lens diagram

Focal Length
50mm
Aperture Ratio
1 : 2
Minimum Aperture
F16
Lens Construction
8 groups 10 elements
Angle of View
46.5°
Aperture Blade
12 elements(Circular aperture at F2, F2.8 and F16)
Minumum Focus
0.45m
Maximum reproduction ratio
1: 6.46
Diameter×Length
φ67.6×64.3mm
Filter size
φ52mm
Weight
347g
Hood
Screw-in hood includes
Aperture ring
Available (Manual Setting)
Electrical Contact
Available *1
Exif Data
Available *1 *2
Focusing support function 1
Color changing of the focus point frame
Focusing support function 2
Peaking function focusing
Focusing support function 3
Magnification button on camera body
In-body image stabilization
Possible(only on camera with in-body stabilization)
Corresponding sensor size
Full flame

EAN

Ean Code
EAN 4002451 006729
