COSINA

APO-SKOPAR 90mm F2.8 SL IIs

High performance and compactness

Features

The newly designed optical system uses abnormal partially dispersion glass for 5 out of 7 elements in 7 groups. The apochromatic design that makes axial chromatic aberration as close to zero as possible realized high image quality.
And the simple structure that extends the entire lens for focusing realized a compact lens with total length of 40mm (from the mount surface).

Weight is as light as 260g, and its size and weight are almost the same as the standard lens ULTRON 40mm F2 Aspherical SL IIs, and it has excellent portability.

Main Features

Apochromatic design

The apochromatic design that makes the on-axis chromatic aberration of RGB, as close to zero as possible.

Design with nostalgia and functionality

The focus ring and aperture ring are all made of metal, and the large-cut finger grip and the precision-cut knurled pattern are not only nostalgic and beautiful, but also have functionality that enhances the feeling of manual operation.

Manual focus for reliable focus operation

By adopting an all-metal helicoid unit processed and adjusted with high precision and high-quality grease that produces an appropriate torque, focusing with a smooth operation feeling is realized.

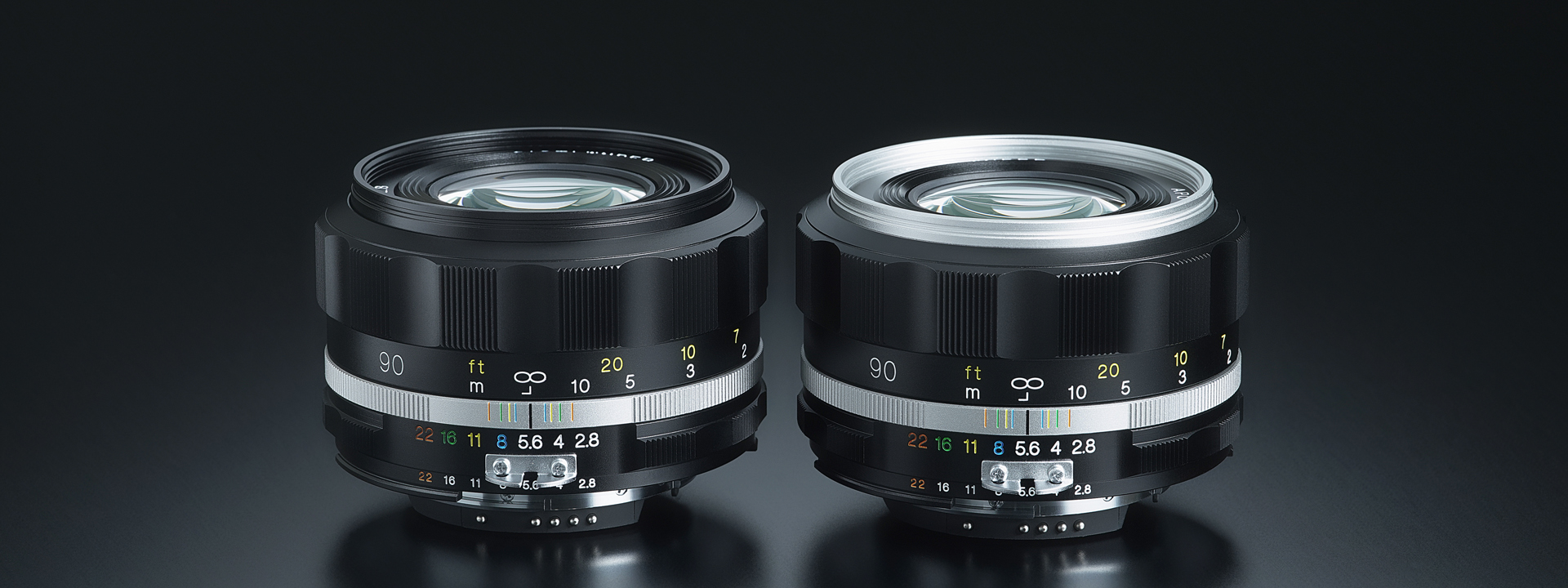

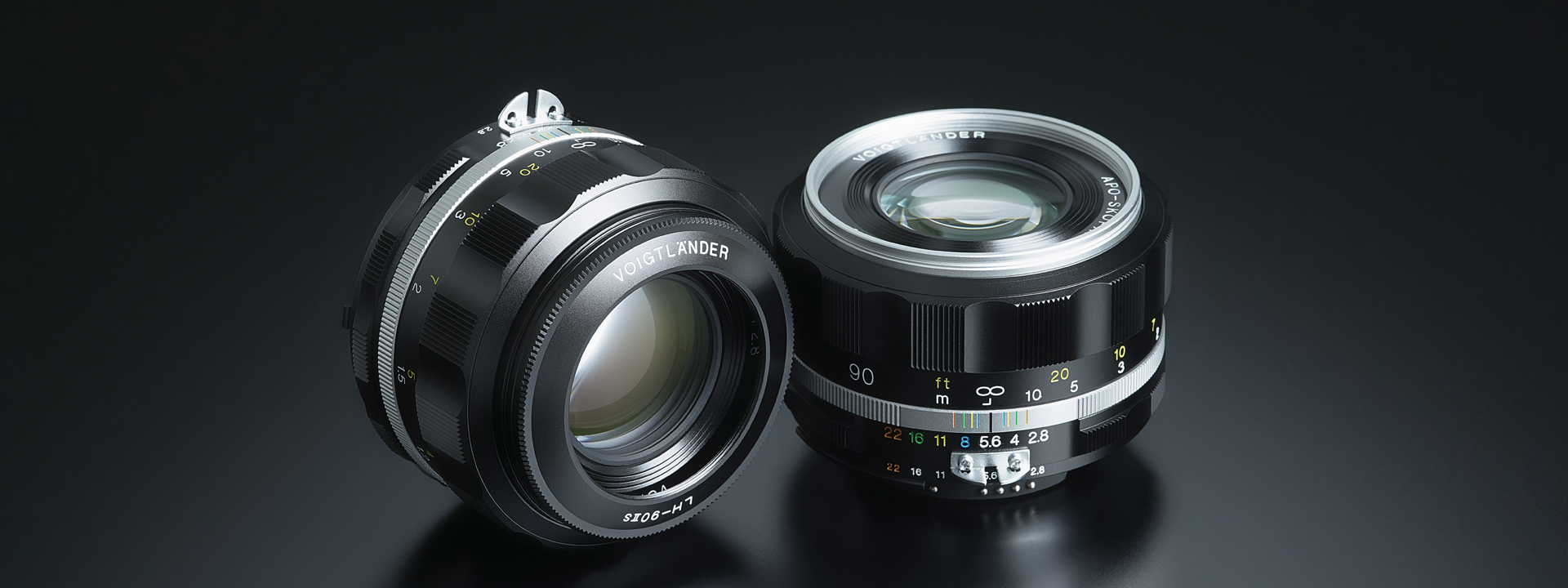

Choice of appearance variations

As homage to the look of SLR cameras in the 1960’s and 1970’s, the lens is offered with both silver and black rim.

A wide variety of camera bodies

The mount is compatible with Nikon Ai-S with a built-in CPU, and it also has an Ai coupler. This makes it possible to use with a wide variety of film or digital camera bodies, regardless of the age and style.

Specifications

Lens diagram

Focal Length
90mm
Aperture Ratio
1:2.8
Minimum Aperture
F22
Lens Construction
7 groups 7 elements
Aperture Blade
9
Angle of View
27.5
Minimum Focus
0.9m
Maximum reproduction ratio
1:8.1
Diameter × Length
φ66.3 x 41.0mm
Filter size
φ52mm
Mount
Ai-S(CPU integrated)
Weight
260g
Hood
LH-90 IIS (Optional hood)
Color
Silver rim / Black rim

EAN

Ean Code
EAN 4002451006811 (Silver rim)
EAN 4002451006804 (Black rim)

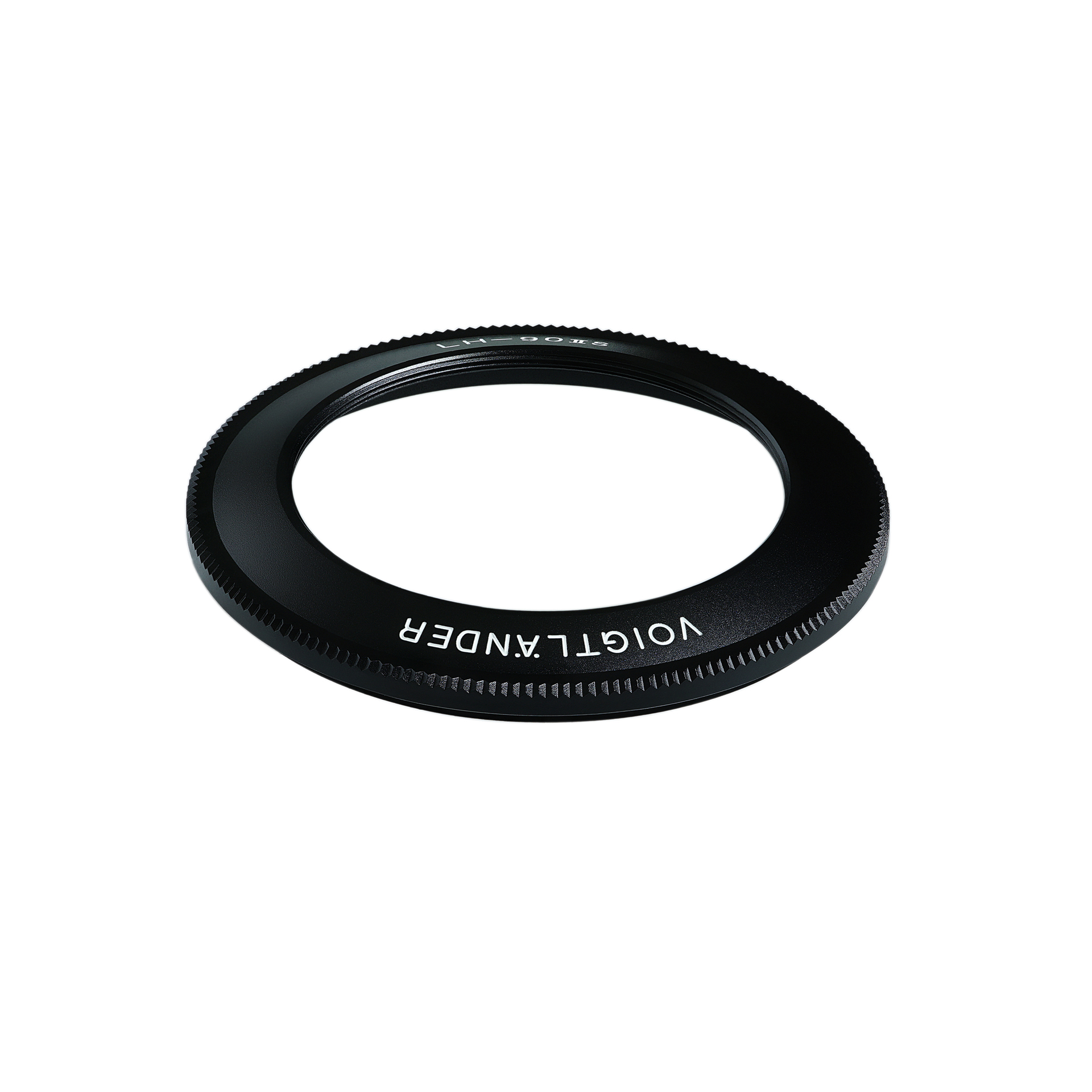

Accessories

  • LH-90 IIS (Optional hood)

Examples

  • APO-SKOPAR 90mm F2.8 SL IIs PHOTO BY Takashi Koike
  • APO-SKOPAR 90mm F2.8 SL IIs PHOTO BY Takashi Koike
  • APO-SKOPAR 90mm F2.8 SL IIs PHOTO BY Takashi Koike
  • APO-SKOPAR 90mm F2.8 SL IIs PHOTO BY Takashi Koike
  • APO-SKOPAR 90mm F2.8 SL IIs PHOTO BY Takashi Koike
Voigtländer APO-SKOPAR 90mm F2.8 SL IIs PHOTO BY Takashi Koike
Voigtländer APO-SKOPAR 90mm F2.8 SL IIs PHOTO BY Takashi Koike
Voigtländer APO-SKOPAR 90mm F2.8 SL IIs PHOTO BY Takashi Koike
Voigtländer APO-SKOPAR 90mm F2.8 SL IIs PHOTO BY Takashi Koike
Voigtländer APO-SKOPAR 90mm F2.8 SL IIs PHOTO BY Takashi Koike
PHOTO_01
PHOTO_02
PHOTO_03
PHOTO_04
PHOTO_05
