COSINA

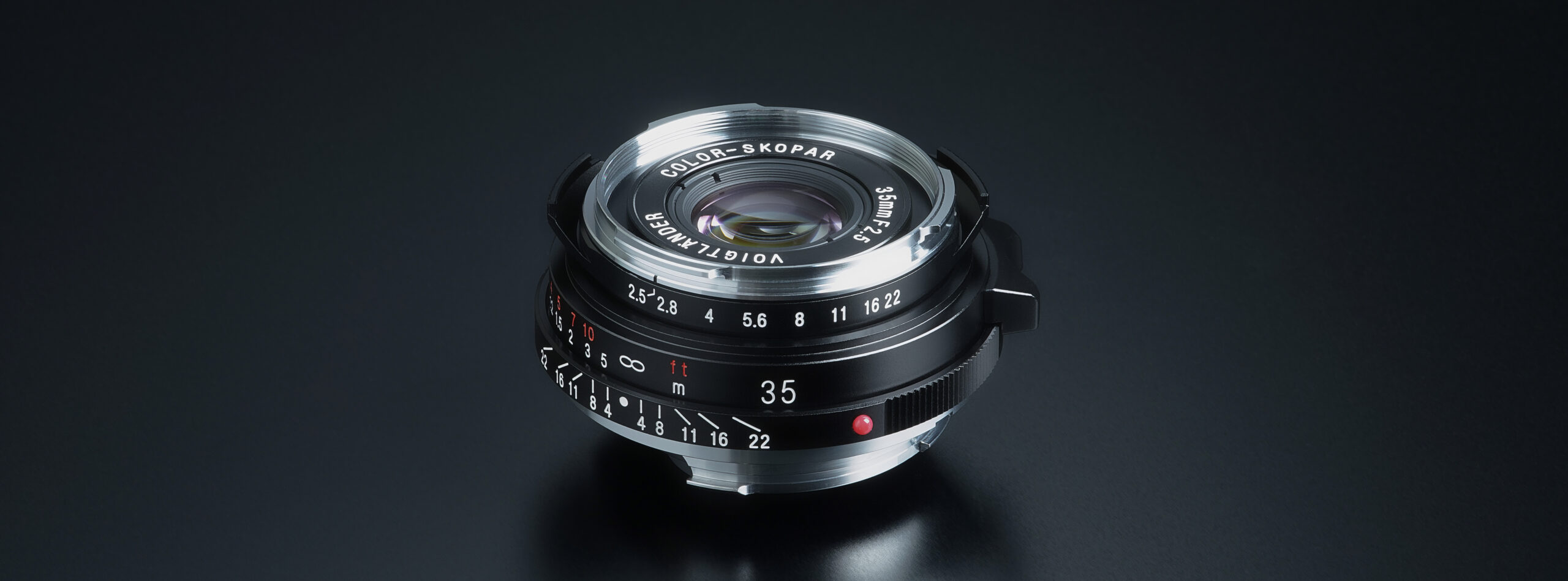

COLOR-SKOPAR 35mm F2.5 P II

The stylish pancake lens

Features

This pancake type semi-wide angle lens lets you enjoy rich expression of tones and excellent sharpness right into the corners. Even though the lens is tiny, it offers excellent focusing and aperture operability. It can be used as a highly versatile everyday lens.

Main Features

Excellent operability despite the compact size

This lens features a newly designed lens barrel for excellent operability despite its pancake-like 23mm length. Excellent operability is achieved with the focusing tab shaped to fit your finger and the aperture mechanism with distinctive click stops.

Dedicated bayonet type lens hood

A durable and beautiful metal dedicated bayonet type lens hood that only slightly protrudes into the field of view when the lens is attached to a rangefinder camera is provided as an optional accessory.

Manual focus for reliable focusing

Employs a very precisely machined and adjusted all metal helicoid unit lubricated with high quality grease to realize smooth focusing operation with just the right amount of torque. This enables very precise focusing.

Bayonet type VM mount

Uses the VM-mount lens mount compatible with Leica M-mount. Not only can this lens be used on rangefinder-coupled cameras, but design-wise it also balances very nicely when mounted on mirrorless digital cameras with a mount adapter.

Installed with a focus-coupling system

The high-precision rangefinder coupling mechanism enables precise focusing even with the lens’s deep depth of focus.

Imaging circle that covers full frame format

The lens features a generous imaging circle that covers the 35 mm full frame format. Furthermore, its size is extremely compact compared to interchangeable lenses for single-lens reflex cameras.

Specifications

Lens diagram

Focal Length
35mm
Aperture Ratio
1 : 2.5
Minimum Aperture
F22
Lens Construction
5 groups 7 elements
Angle of View
63°
Aperture Blade
10
Minimum Focus
0.7m
Rangefinder Coupling
∞~0.7m (It depends on the camera)
Diameter × Length
φ55.0×23.0mm
Filter size
φ39mm
Weight
134g
Hood
LH-4N (Optional hood)

EAN

Ean Code
EAN 4002451194440

Accessories

  • LH-4N (Option)

Examples

  • COLOR-SKOPAR 35mm F2.5 P II PHOTO BY Kohichi Akagi
  • COLOR-SKOPAR 35mm F2.5 P II PHOTO BY Kohichi Akagi
  • COLOR-SKOPAR 35mm F2.5 P II PHOTO BY Kohichi Akagi
  • COLOR-SKOPAR 35mm F2.5 P II PHOTO BY Kohichi Akagi
  • COLOR-SKOPAR 35mm F2.5 P II PHOTO BY Kohichi Akagi
  • COLOR-SKOPAR 35mm F2.5 P II PHOTO BY Kohichi Akagi
Voigtländer COLOR-SKOPAR 35mm F2.5 P II PHOTO BY Kohichi Akagi
Voigtländer COLOR-SKOPAR 35mm F2.5 P II PHOTO BY Kohichi Akagi
Voigtländer COLOR-SKOPAR 35mm F2.5 P II PHOTO BY Kohichi Akagi
Voigtländer COLOR-SKOPAR 35mm F2.5 P II PHOTO BY Kohichi Akagi
Voigtländer COLOR-SKOPAR 35mm F2.5 P II PHOTO BY Kohichi Akagi
Voigtländer COLOR-SKOPAR 35mm F2.5 P II PHOTO BY Kohichi Akagi
