COSINA

COLOR-SKOPAR Vintage Line 21mm F3.5

Snap shot dynamism

Features

This super-wide angle lens combines an exterior design reminiscent of the glamorous styling of classic lenses now regarded as historical masterpieces with optical performance that matches contemporary photographic equipment. By limiting its maximum aperture to a practical level, this lens combines compactness with excellent optical performance. This makes the lens eminently portable for snap shooting, which is a natural niche for a rangefinder camera.

Main Features

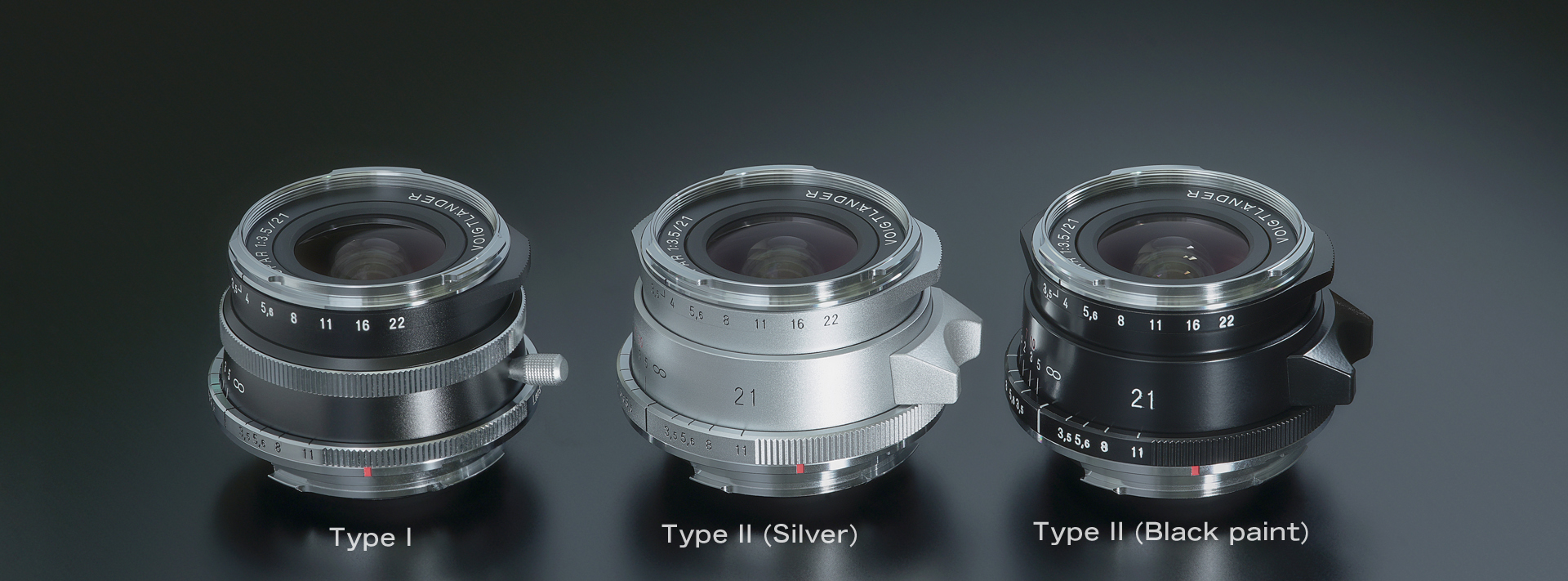

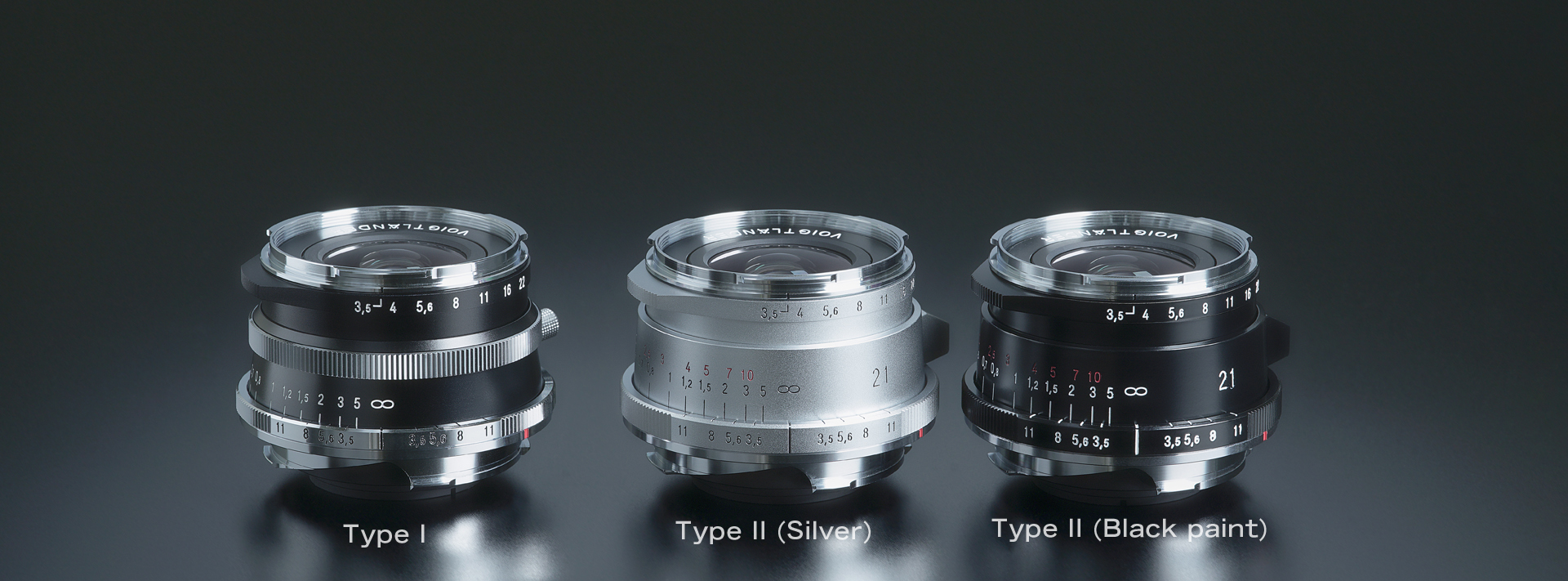

Classical exterior

The lens has a classical design reminiscent of the famous lenses of the 1950s. With all parts made from metal for excellent feel and operability, the lens delivers joy of ownership.

Modern lens design

In consideration for use on digital cameras, the lens utilizes an optical design that suppresses color shifts around the image periphery. Great image quality is achieved with both film and digital.

Minimum focus distance of 0.5 meters

The lens focuses beyond the minimum rangefinder-coupled focus distance of 0.7m all the way down to 0.5m. This feature is especially useful when using the lens on a camera with a live view function.

Focusing stick ideal for quick shooting

Focusing can also be performed using the focusing stick. The focusing stick is effective for snap shooting as it enables the focusing distance to be set intuitively without having to look at the distance scale.

Bayonet type hood (sold separately)

The bayonet type LH-11 lens hood manufactured from aluminum and finished with crystal paint highly valued for its classical texture is available as an optional accessory.

Manual focus for reliable focusing

Employs a very precisely machined and adjusted all metal helicoid unit lubricated with high quality grease to realize smooth focusing operation with just the right amount of torque. This enables very precise focusing.

Bayonet type VM mount

Uses the VM-mount lens mount compatible with Leica M-mount. Not only can this lens be used on rangefinder-coupled cameras, but design-wise it also balances very nicely when mounted on mirrorless digital cameras with a mount adapter.

Installed with a focus-coupling system

The high-precision rangefinder coupling mechanism enables precise focusing in focus critical situations such as when shooting at or close to maximum aperture.

Imaging circle that covers full frame format

The lens features a generous imaging circle that covers the 35 mm full frame format. Furthermore, its size is extremely compact compared to interchangeable lenses for single-lens reflex cameras.

Specifications

Lens diagram

Focal Length
21mm
Aperture Ratio
1 : 3.5
Minimum Aperture
F22
Lens Construction
8 groups 9 elements
Angle of View
91.0°
Aperture Blade
10
Minimum Focus
0.5m
Rangefinder Coupling
∞~0.7m (It depends on the camera)
Diameter × Length
φ52×30.0mm
Filter size
φ39mm
Weight
180g
Hood
LH-11 (Optional hood)

EAN

Ean Code
EAN 4002451001564

Accessories

  • LH-11 (Option)

Examples

  • COLOR-SKOPAR Vintage Line 21mm F3.5 PHOTO BY Tetsu Iida
  • COLOR-SKOPAR Vintage Line 21mm F3.5 PHOTO BY Tetsu Iida
  • COLOR-SKOPAR Vintage Line 21mm F3.5 PHOTO BY Tetsu Iida
  • COLOR-SKOPAR Vintage Line 21mm F3.5 PHOTO BY Tetsu Iida
  • COLOR-SKOPAR Vintage Line 21mm F3.5 PHOTO BY Tetsu Iida
Voigtländer COLOR-SKOPAR Vintage Line 21mm F3.5 PHOTO BY Tetsu Iida
Voigtländer COLOR-SKOPAR Vintage Line 21mm F3.5 PHOTO BY Tetsu Iida
Voigtländer COLOR-SKOPAR Vintage Line 21mm F3.5 PHOTO BY Tetsu Iida
Voigtländer COLOR-SKOPAR Vintage Line 21mm F3.5 PHOTO BY Tetsu Iida
Voigtländer COLOR-SKOPAR Vintage Line 21mm F3.5 PHOTO BY Tetsu Iida
PHOTO_01
PHOTO_02
PHOTO_03
PHOTO_04
PHOTO_05
