COSINA

NOKTON 50mm F1 Aspherical

The pleasure of sharpness and style in an ultra-fast lens.

Features

The GA manufacturing technique (grinding aspherical) achieves the fastest and sharpest F1.0 lens amongst the entire Voigtländer full-frame interchangeable lens line.
Being an ultra-fast standard lens, it satisfies both the requirements of sharp image making and unique styling in a short barrel product. All this capability without sacrificing lens performance or increased size is a remarkable feat.
GA lenses are employed, with their high melting points and ultra-high-refraction glass materials. These manufacturing techniques are very difficult to control during lens creation when compared to standard molded aspherical lenses.
Because of these techniques, when the aperture open to its widest (F1.0, ) you can enjoy a very large bokeh effect, creating mood and style. At the same time you will notice the extremely sharp image depiction of in-focus areas.

Main Features

GA (grinding aspherical) lens.

The GA lens, produced in-house by us, is used as the primary element of the lens.

A sharp and unique style

This F1.0 lens limits the intrusion into the camera rangefinder by the total lens length being only 55mm (from lens tip to flange mount surfaces) despite the ultra-fast aperture. The lens also features a good balance between the body and the lens from an aesthetic point of view and also is very portable.

Beautiful bokeh with 12 diaphragm blades

A 12-blade aperture is used to make the opening formed by the blades into a rounder circle. The out-of-focus portion of the image has a creamy texture, and when encountering a point light source, it is depicted in a neat circular shape with a soft smooth rendering.

Dedicated metal lens hood included

The lens comes with a metal hood with a bayonet-type mount and can be reverse-mounted for portability when stored. It is a very convenient lens to carry.

Manual focus for accurate operation

By utilizing an all-metal helicoid unit, processed and adjusted with high precision and high-quality lubricants, the lens produces exactly the appropriate torque when focused. This makes focusing have a smooth feeling that is both precise and a pleasure to use. It enables the photographer to have a fine touch, a feeling which is hard to replicate in auto-focus lenses.

Bayonet VM mount

A VM mount, compatible with the Leica M mount, is used for the lens connection with the camera. Not only can it be used with many rangefinder cameras, but it also has an excellent balance when attached to a mirrorless digital camera via an appropriate adapter.

Equipped with an accurate rangefinder interlocking system

The high-precision rangefinder interlocking mechanism enables extreme focusing even near the maximum aperture of F1.0.

Full size image circle

We have created a generous image circle that supports the full-frame format. In addition, it achieves a very compact size when compared to interchangeable lenses for single-lens reflex cameras.

Specifications

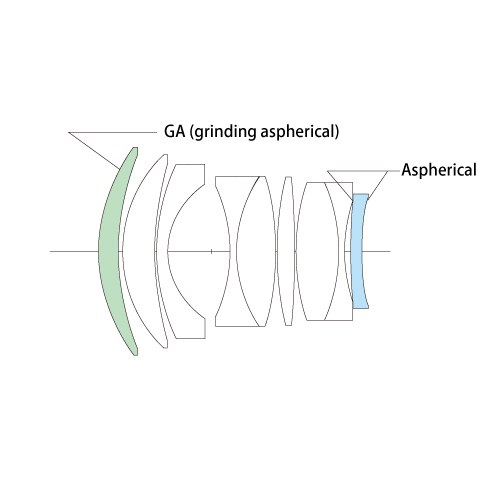

Lens diagram

Focal Length
50mm
Aperture Ratio
1 : 1
Minimum Aperture
F16
Lens Construction
7 groups 9 elements
Angle of View
47.8°
Aperture Blade
12 elements
Minimum Focus
0.9m
Rangefinder Coupling
∞~0.9m (It depends on the camera)
Diameter × Length
φ73.6×55.0mm
Filter size
φ62mm
Weight
484g
Hood
Included (Reversible Hood)

EAN

Ean Code
EAN 4002451006835

Accessories

  • Bayonet hood included
