COSINA

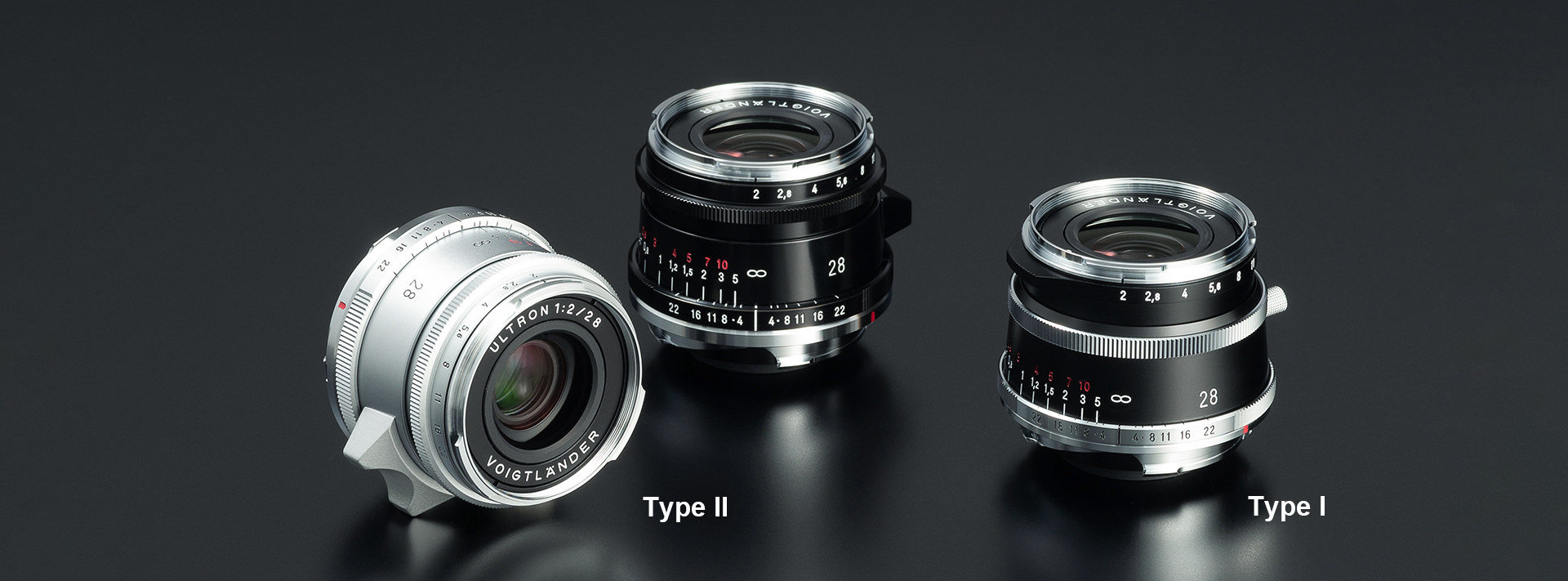

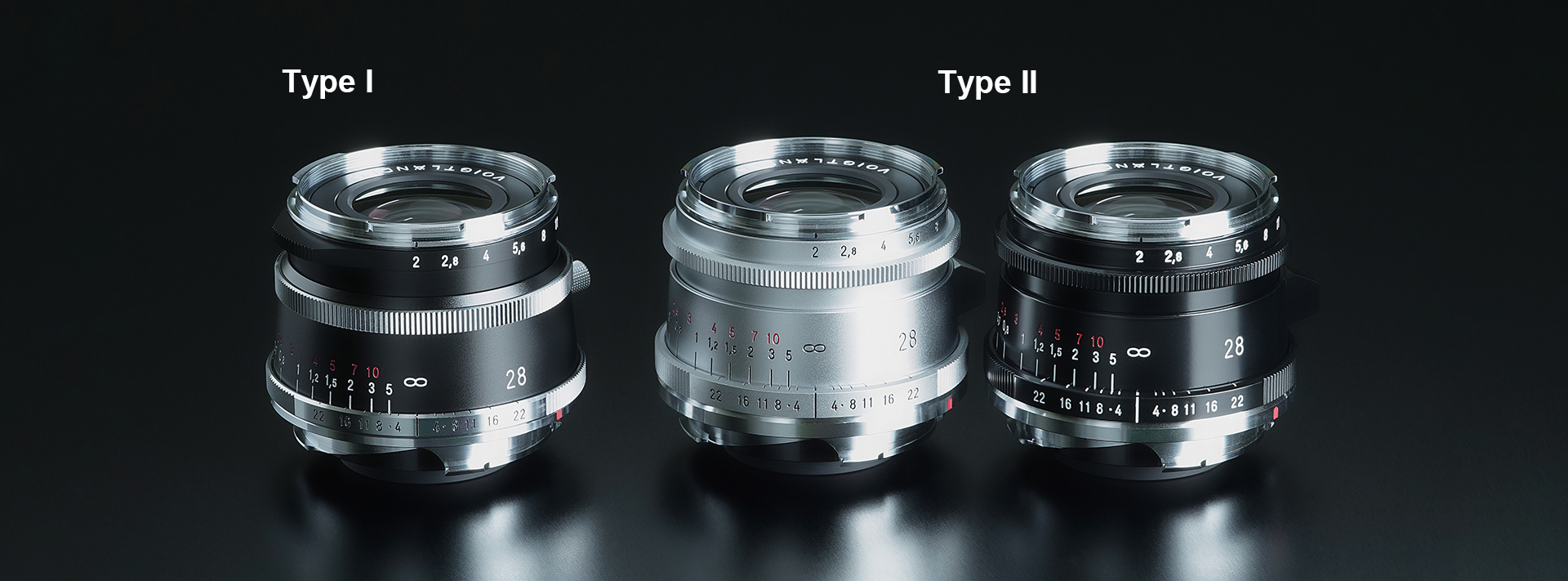

ULTRON Vintage Line 28mm F2 Aspherical

Snap shooter’s ally

Features

This wide angle lens combines an exterior design reminiscent of the glamorous styling of classic lenses now regarded as historical masterpieces with optical performance that matches contemporary photographic equipment. By limiting its maximum aperture to a practical level, this lens combines compactness with excellent optical performance. This makes the lens eminently portable for snap shooting, which is a natural niche for a rangefinder camera.

Main Features

Classical exterior

The lens has a classical design reminiscent of the famous lenses of the 1950s (early 1970s for type II). With all parts made from metal for excellent feel and operability, the lens delivers joy of ownership.

Modern lens design

In consideration for use on digital cameras, the lens utilizes an optical design with 10 elements in 7 groups that suppresses color shifts around the image periphery. Great image quality is achieved with both film and digital.

Minimum focus distance of 0.5 meters

The lens focuses beyond the minimum rangefinder-coupled focus distance of 0.7m all the way down to 0.5m. This feature is especially useful when using the lens on a camera with a live view function.

Focusing stick ideal for quick shooting (Type I)

Focusing can also be performed using the focusing stick in addition to the focusing ring. The focusing stick is effective for snap shooting as it enables the focusing distance to be set intuitively just by feeling its position.

Focusing tab for ease of operability (Type II)

The focusing tab is shaped to fit your finger to ensure fast and precise focusing.

Bayonet type hood (sold separately)

The optional LH-4N hood is manufactured from aluminum and utilizes a bayonet type mount for fast attachment/removal. The LH-12 lens hood finished with crystal paint highly valued for its classical texture can also be used.

Manual focus for reliable focusing

Employs a very precisely machined and adjusted all metal helicoid unit lubricated with high quality grease to realize smooth focusing operation with just the right amount of torque. This enables very precise focusing.

Bayonet type VM mount

Uses the VM-mount lens mount compatible with Leica M-mount. Not only can this lens be used on rangefinder-coupled cameras, but design-wise it also balances very nicely when mounted on mirrorless digital cameras with a mount adapter.

Installed with a focus-coupling system

The high-precision rangefinder coupling mechanism enables precise focusing in focus critical situations such as when shooting at or close to maximum aperture.

Imaging circle that covers full frame format

The lens features a generous imaging circle that covers the 35 mm full frame format. Furthermore, its size is extremely compact compared to interchangeable lenses for single-lens reflex cameras.

Specifications

Lens diagram

Focal Length
28mm
Aperture Ratio
1 : 2
Minimum Aperture
F22
Lens Construction
7 groups 10 elements
Angle of View
74.51°
Aperture Blade
10
Minimum Focus
0.5m
Rangefinder Coupling
∞~0.7m (It depends on the camera)
Diameter × Length
φ52.0×36mm(Type I)
φ51.4×36mm(Type II)
Filter size
φ39mm
Weight
190g(Type I)
230g(Type II)
Hood
LH-4N (Optional hood)
LH-12 (Opitonal hood)
Color (Type II)
Silver /Black paint
(Both exterior are made of brass)

EAN

Ean Code
EAN 4002451006903(Type I)
EAN 4002451006910(Type II Silver)
EAN 4002451006927(Type II Black)

Accessories

  • LH-12
    (Option)
  • LH-4N
    (Option)

Examples

  • ULTRON Vintage Line 28mm F2 Aspherical PHOTO BY Toshimi Matsuda
  • ULTRON Vintage Line 28mm F2 Aspherical PHOTO BY Toshimi Matsuda
  • ULTRON Vintage Line 28mm F2 Aspherical PHOTO BY Toshimi Matsuda
  • ULTRON Vintage Line 28mm F2 Aspherical PHOTO BY Toshimi Matsuda
  • ULTRON Vintage Line 28mm F2 Aspherical PHOTO BY Toshimi Matsuda
  • ULTRON Vintage Line 28mm F2 Aspherical PHOTO BY Toshimi Matsuda
Voigtländer ULTRON Vintage Line 28mm F2 Aspherical PHOTO BY Toshimi Matsuda
Voigtländer ULTRON Vintage Line 28mm F2 Aspherical PHOTO BY Toshimi Matsuda
Voigtländer ULTRON Vintage Line 28mm F2 Aspherical PHOTO BY Toshimi Matsuda
Voigtländer ULTRON Vintage Line 28mm F2 Aspherical PHOTO BY Toshimi Matsuda
Voigtländer ULTRON Vintage Line 28mm F2 Aspherical PHOTO BY Toshimi Matsuda
Voigtländer ULTRON Vintage Line 28mm F2 Aspherical PHOTO BY Toshimi Matsuda
