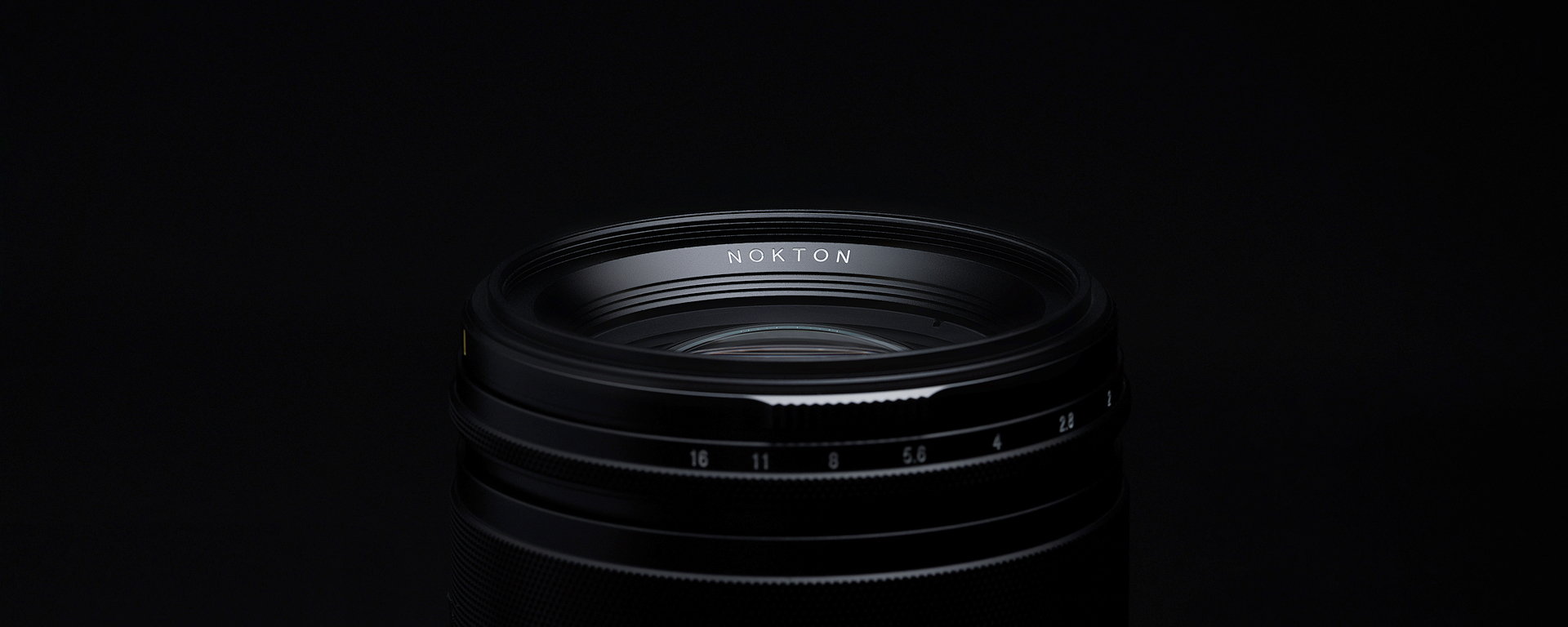

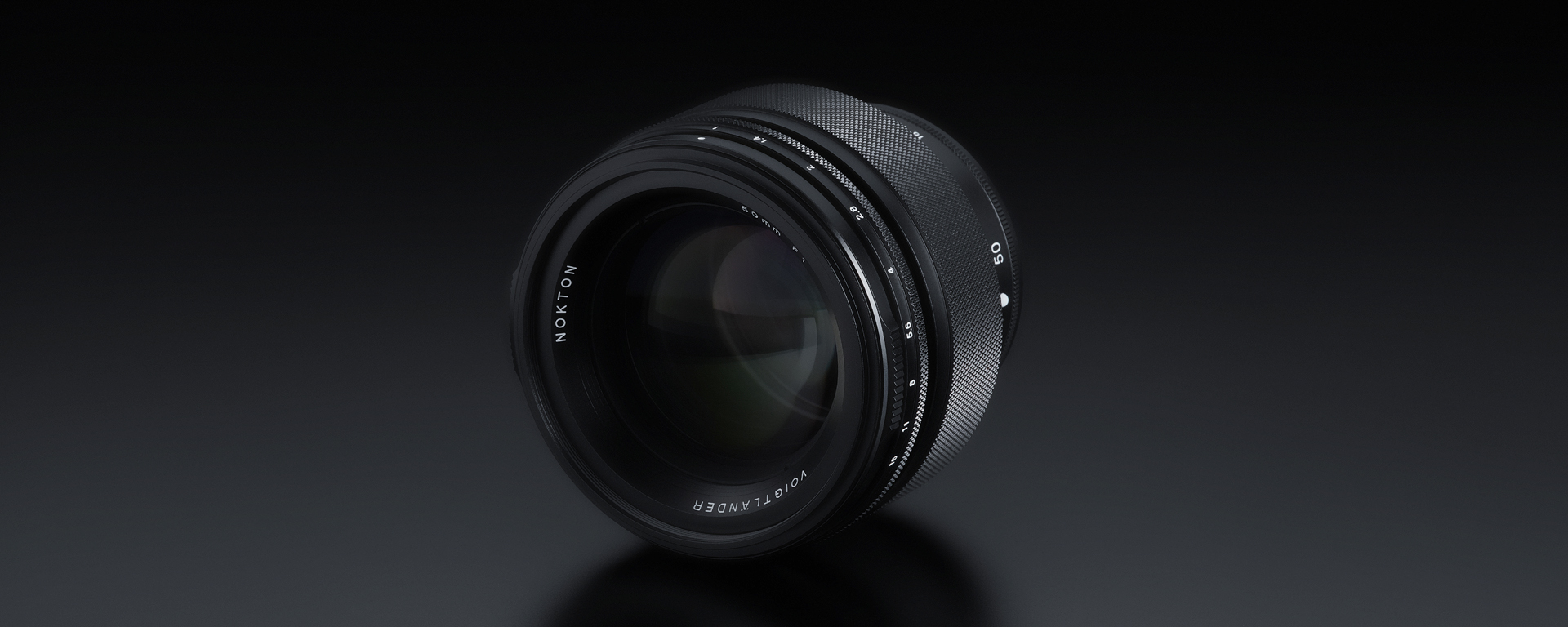

NOKTON 50mm F1 Aspherical
Features
This ultra-fast standard lens uses a GA (ground aspherical) lens manufactured in-house to achieve a tight, compact style while offering the brightest F1 of any Voigtländer interchangeable lens for full-frame format. At the maximum aperture of F1, the lens produces an extremely large amount of bokeh, allowing the focused motif to be rendered impressively.
Main Features
For Sony E-mount
The lens has electronic contacts to ensure that lens usage data is included in the Exif data of captured images. Furthermore, the built-in distance encoder enables support for 5-axis image stabilization on the body side. Other features include being able to magnify the finder display by operating the focus ring.
Optimized optical design
Provides an imaging circle that covers the 35 mm full frame format and utilizes an optical design optimized for Sony E-mount sensors. High resolution is maintained up to the image periphery and color shifts are well controlled.
GA (ground aspherical) lens
The first surface of the lens is a GA (ground aspherical) lens manufactured in-house.
This enables simplification of the lens construction while guaranteeing high performance, and achieves both a high level of image quality and a tight style despite the ultra-fast lens.
Floating mechanism employed
The lens employs a floating mechanism that independently moves a lens group according to the focus distance to ensure reliable imaging quality for subjects at the minimum focus distance (0.45m) through to infinity.
12-blade aperture diaphragm for beautiful bokeh
The aperture diaphragm is configured with 12 blades to make the aperture opening as circular as possible. This means the out-of-focus areas of images are drawn naturally and point light sources etc. are drawn as soft round bokeh rather than as polygonal shapes.
Manual focus for reliable focus operation
Adopting a full-metal helicoid unit processed and adjusted with high precision and high-quality grease that produces an appropriate torque, focusing with a smooth operation feeling is realized. It enables fine focus adjustment.
Aperture click-stop switching mechanism
The aperture click-stop switching mechanism enables the aperture mechanism to be steplessly stopped down/opened up with no click-stop sound. This ensures that the sound of the aperture ring being operated is not recorded while capturing video and also enables a high level of depth of focus control by fine-tuning the aperture ring.
Specifications
Lens diagram
- Focal Length
- 50mm
- Aperture Ratio
- 1 : 1
- Minimum Aperture
- F16
- Lens Construction
- 7 groups 9 elements
- Angle of View
- 48.0°
- Aperture Blade
- 12
- Minimum Focus
- 0.45m
- Maximum reproduction ratio
- 1 : 6.9
- Diameter × Length
- φ79.3×69.3mm
- Filter size
- φ67mm
- Weight
- 590g
- Hood
- Screw in Hood
- Electrical Contact
- Available
- Manual Focus Assist
- Available
- Exif Data
- Available
- Auto Lens Correction
- Possible
- 5-Axis Image Stabilization
- Possible * only on camera body with 5-Axis Image Stabilization
- Others
- Selective Aperture Control System
EAN
- Ean Code
- EAN 4002451 007085
Examples
-
NOKTON 50mm F1 Aspherical PHOTO BY _ _ -
NOKTON 50mm F1 Aspherical PHOTO BY _ _ -
NOKTON 50mm F1 Aspherical PHOTO BY _ _ -
NOKTON 50mm F1 Aspherical PHOTO BY _ _ -
NOKTON 50mm F1 Aspherical PHOTO BY _ _
